1 SAFR Digifort Integration Guide

1.1 Introduction

Integrated SAFR Digifort is only available on Windows.

Integrating SAFR’s facial recognition and analysis capabilities into Digifort enables you to use SAFR’s video feed information overlays within Digifort camera video feeds, thus making it much easier to quickly and accurately separate unknown people from authorized people from known threats. You’ll also have immediate access to additional infomation such as age, gender, sentiment, name, company, known associates, or any other configurable information you want to create.

Integrating the two systems also allows SAFR’s information about individuals to trigger Digifort alerts and other actions within the Digifort system. Digifort’s metadata within bookmarks are enriched with SAFR’s additional information, allowing you to more easily find relevant bookmarks.

1.1.1 Integration Overview and Requirements

A typical deployment requires the following:

• A machine running Digifort Server and Digifort Administration Client.

• A machine running the Digifort Surveillance Client at monitoring locations.

• One or more machines running the SAFR Desktop Client to process videos.

• If you’re doing a SAFR local deployment, you’ll also need a machine running SAFR Server. SAFR Server can run on the same machine as one of the Desktop Clients, provided the host machine meets the system requirements.

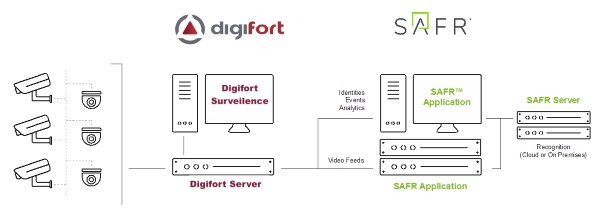

Cameras are connected to Digifort. The SAFR Desktop Client can connect to Digifort to perform analysis of the video. Depending on the number of cameras you need, one or more machines can run SAFR Desktop, each processing multiple video feeds. The Desktop Client processes the video and returns information to Digifort to generate events. The Desktop Client is also used to perform various management activities. This could be run on the same system as Digifort Server.

1.1.1.1 System Requirements

Digifort has the following requirements:

• Each machine running Digifort must meet the following requirements:

• The Digifort version must be 7.2.1 or later.

• The machine must be running Windows 10 or later.

• .Net Framework 4.6.2 or later must be installed.

• Each camera connected to Digifort requires a Digifort license.

Note: Digifort licenses must be acquired before attempting to discover and add cameras.

SAFR has the following requirements:

• Each camera running SAFR must have a SAFR license.

• Each machine running the SAFR Desktop Client must meet the following requirements:

• The Desktop Client must be version 1.4.162 or later.

• The system requirements described here.

• Local SAFR deployments require at least one machine running SAFR Platform 1.4.157 or later.

• Each machine running SAFR Platform must meet the system requirements described here.

1.1.2 Install and Configure Digifort

Download and install Digifort by doing the following:

1. Turn off Windows Defender and Firewalls. (Digifort requires that both these features be disabled.)
2. Download the latest Digifort installer package from Digifort and install the full package.
3. Open the Digifort Administration Client and add a new server. Log in with the default username admin and set a password in the Users tab. As an administrator, you can create additional user accounts if needed.
4. To connect cameras to Digifort, do the following:
   1. Go to Recording Servers in the Digifort Administration Client.
   2. Click Camera from the Add Button.

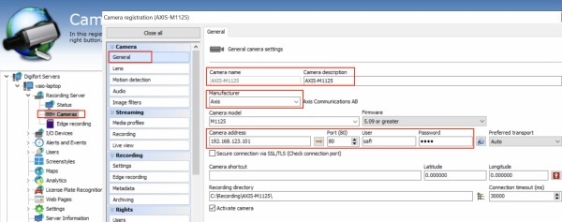

   3. Complete the dialog shown in the following graphic to add Camera manufacturer, model, IP Address, and other information as needed.

Note: Digifort allows you to add mobile cameras as well as using the Digifort Mobile Camera Pro

App. In the Add Camera dialog, select Digifort as the manufacturer and Mobile Camera Pro as the make.

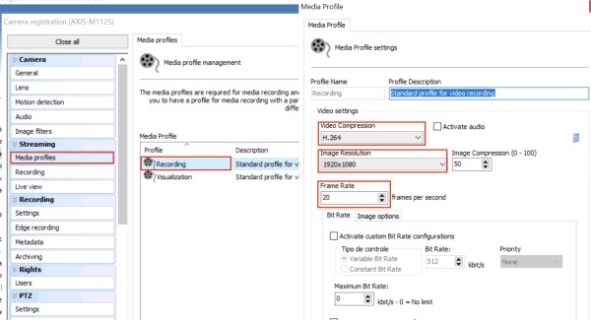

5. You may need to update the Video Compression, Image Resolution, Frame Rate, or Image Rotation, as shown below:

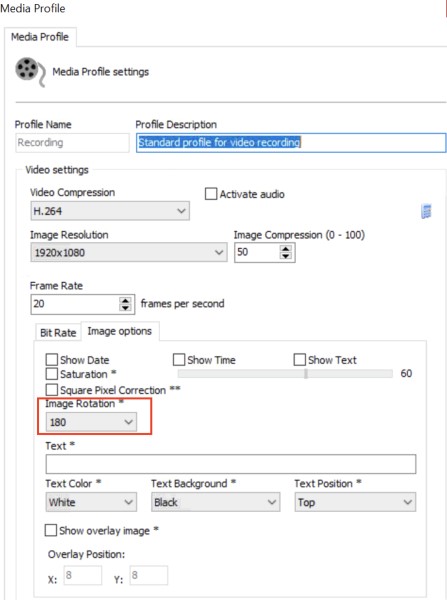

6. You may need to update the Image Rotation or Profile Description on the Media Profile settings page, as shown below:

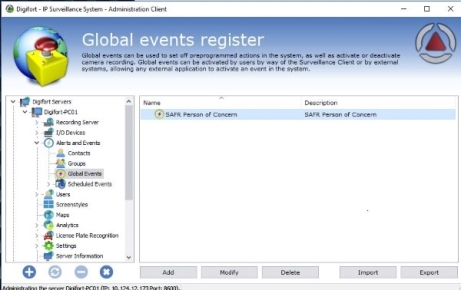

7. Navigate to Alerts and Events > Global Events to add events as needed. You can configure the event actions there too, when needed.

Configure the Digifort Surveillance Client by doing the following:

1. Start Digifort Serveillance Client.

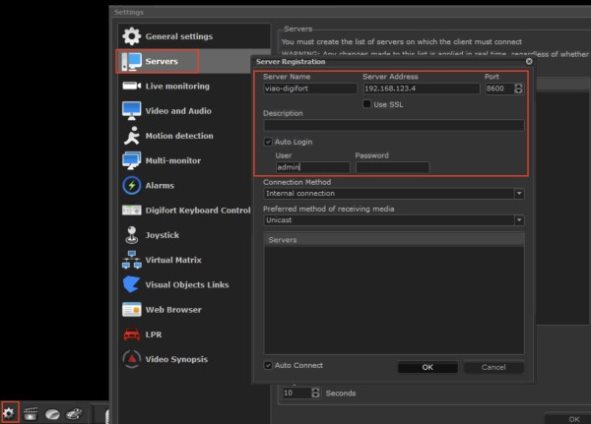

2. Go to Setting > Servers > Add.
3. Restart Digifort Serveillance Client.
4. Select the IP camera from the list.

1.1.3 Connect an IP Camera

Important: Digifort licenses must be acquired prior to attempting to discover and add cameras.

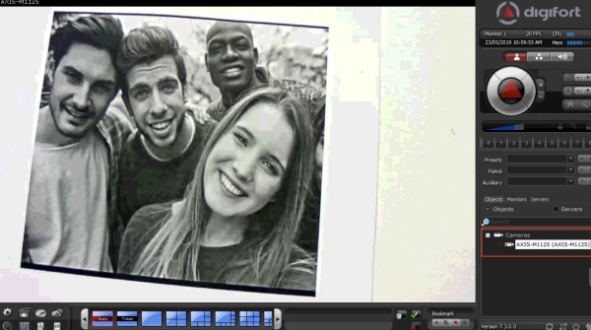

1. Start the Digifort Serveillance Client.
2. Select the IP camera from the Cameras list.

1.1.4 Install and Configure SAFR

1. From the SAFR Download Portal, download and install either SAFR Platform or SAFR Desktop, depending on your deployment type. Make sure to select the Digifort VMS extension install option.

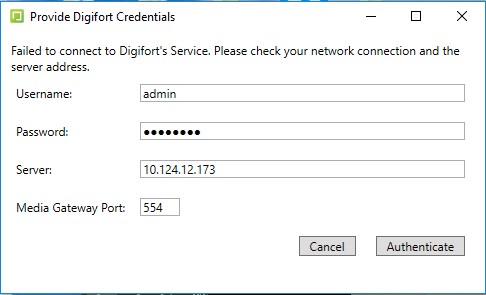

2. After installing SAFR, you’ll be prompted for the Digifort Credentials as shown in the following dialog:

3. Enter the information for the Digifort user created previously to connect to Digifort server, and click OK.

Note: During the Digifort login and authentication process, you may be prompted to enter your SAFR account credentials as well as to log into any automatically detected cameras.

4. After SAFR finishes installing, open the SAFR Desktop Client.

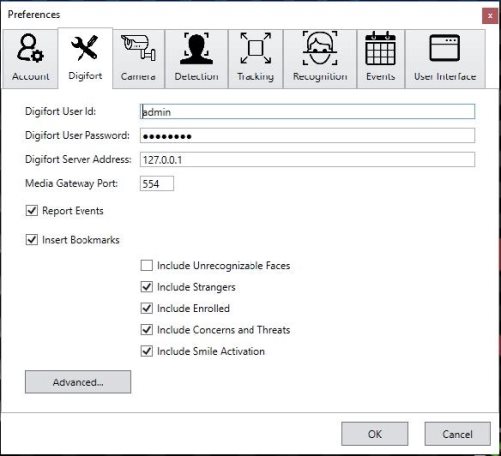

5. From the Tools menu, select Preferences, and click the Digifort tab.

6. Enter the following information.

• Digifort User Id: User created previously in Configure Digifort.

• Digifort User Password: Password created for the SAFR user.

• Digifort Server Address: IP address of server running Digifort.

• Media Gateway Port: Set to 554 unless configured otherwise in Digifort.

7. Click OK.

1.1.5 Verify your Connection

To verify successful connection to the Digifort system, open the Preferences > Camera tab. Cameras connected to the Digifort system should be visible. All cameras connected to the Digifort system have a Digifort prefix in their names.

2 SAFR Digifort Operation Guide

2.1.1 SAFR Digifort Preferences

• Digifort User Id: User created previously in Configure Digifort

• Digifort User Password: Password created for the SAFR user

• Digifort Server Address: IP address of server running Digifort

• Media Gateway Port: Set to 554 unless configured otherwise in Digifort

• Report Events: Controls if events are sent to Digifort. Events are used to trigger alarms in Digifort.

• Insert Bookmarks: Adds bookmarks to the video stream related to events. Allows operators to search video for events or recognized person names. Note: Use caution when deciding what to include since many faces can cause many bookmarks to be created.

• Include Unrecognizable Faces: Adds bookmarks when a face detected by SAFR does not have enough information to determine if it is a stranger or known person. This can become visually noisy and is disabled by default. Generally useful for areas where nobody should enter.

• Include Strangers: Adds bookmarks when a face is determined to be a stranger. Generally useful for secured areas where only known people should be.

• Include Enrolled: Adds bookmarks when a face is determined to be a known person.

• Include Concerns and Threats: Adds bookmarks when a face is determined to be a known concern or threat.

• Include Smile Activation: Requires smile activation to trigger recognition.

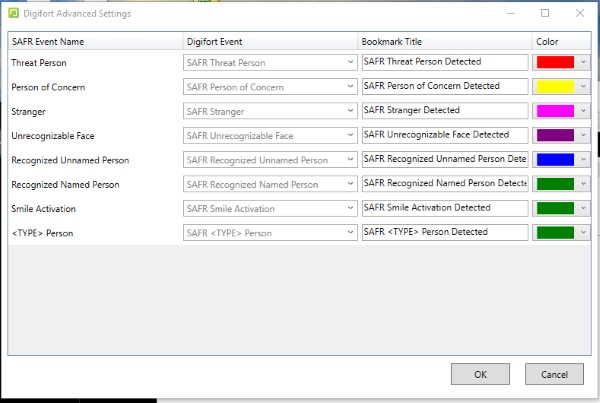

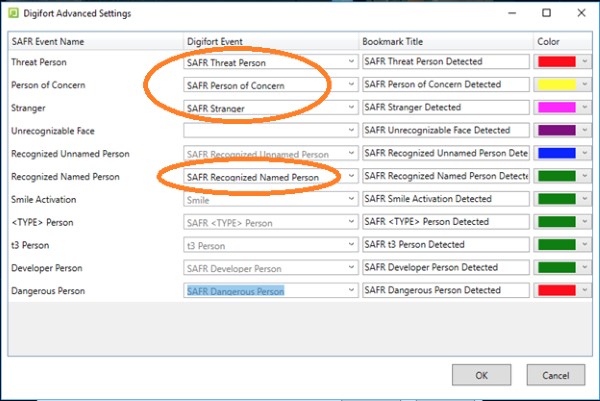

• Advanced: Clicking ozxn the Advanced button opens the following window:

If the Digifort events are disabled (gray; no matching Digifort event), refer to Digifort documentation to create Digifort events. Once the events are created, open the Digifort Advanced Settings dialog and, from the menu for the associated SAFR event, select the Digifort event. Once the Digifort events are created and matched, the events are enabled (black). For information on creating events, refer to Digifort documentation.

This affects the titles given to bookmarks created from the respective events.

Note: Each event type is only created if enabled in the SAFR Digifort Preferences tab.

2.1.2 Connect and Use Cameras and Video Feeds

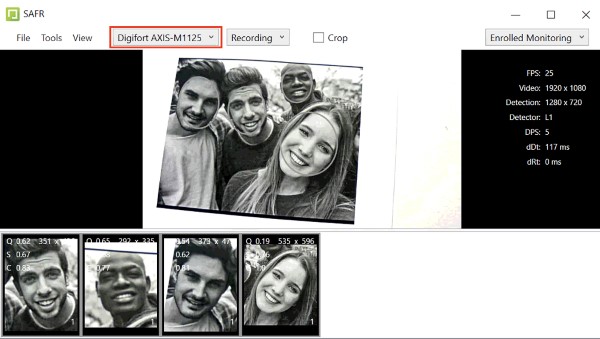

In the SAFR Desktop Client, view the video feed for the camera selected from the camera selection menu.

The menu shows the cameras available from the Digifort servers. To enable the row at the bottom of the screen that isolates individual faces, click View > Detection List.

2.1.3 Digifort Bookmarks

Digifort creates bookmarks to help locate important events. Bookmarks are populated with Person Type, ID

Class, and Name. They can also provide more detailed information with even more search attributes, such as Age and Gender.

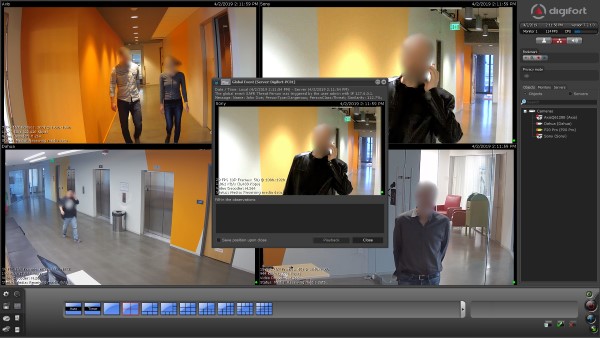

The following illustration shows how bookmarks can be used to review important events, such as the detection of a stranger tailgating behind a registered user.

To view Digifort Bookmarks, do the following:

• Click the Bookmark icon on right side panel.

• Set a date range or other criteria, and click Search.

• Click a bookmark of interest.

• To play the video, click Video.

2.1.4 SAFR Identities

To add people through the SAFR Desktop Client from an image or video file, do the following:

1. Open the Desktop Client.

2. Click File > Import Faces.

3. Select the image.

• For an image, each recognized face is enclosed by a box, and you have the option to type a name.

• For a video, each recognized person is learned automatically as long as the faces meet the minimum criteria for recognition.

4. If faces are not learned, check the settings in the Detection and Recognition tabs under Preferences to ensure faces meet minimum criteria.

• Detection > Minimum searched face size

• Recognition > To allow identification

Warning: Reducing detection and recognition settings lowers the quality of the reference face and negatively impacts recognition. It is preferable to increase the quality of your sources than to lower the criteria for learning.

Warning: Users added to SAFR are not synchronized with Digifort; these users exist only in SAFR.

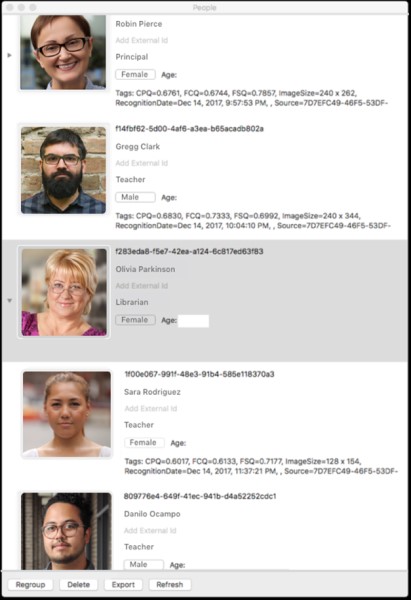

It may be desirable to edit people properties to control which events get triggered when that person is recognized. For example, setting a person’s ID Class to Concern or Threat triggers the respective alarms. The most important people attributes are Name, Image, Person Type, and ID Class.

Name, Image, and Person Type should be edited through SAFR. Person Type defines a person’s role (e.g. staff or visitor), while the ID Class defines the risk level (No-Concern, Concern, or Threat). Person Type and Image can be edited in the Desktop Client by changing the Person Type on the People screen.

ID Class and all other attributes of a person are also edited within SAFR People dialog, accessed through the SAFR Desktop Client Tools menu. All identities are created by default with an ID Class of No Concern. To edit a person’s ID Class, open the People window from the SAFR Desktop Client Tools menu as follows:

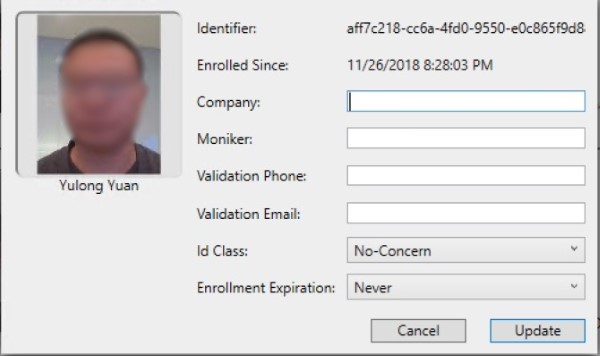

The Person Type and Name can be edited by clicking the respective fields on the People screen. To edit ID

Class, double-click the person, and choose the desired value from the ID Class menu in the People Edit dialog as shown in the following graphic:

2.1.5 SAFR Events

You can use SAFR to generate events. When enabled on the Events Preferences page, events occur when a person appears in the view of a connected camera. When a person appears in the camera’s view, they’re immediately assigned an ID Class attribute, although that ID Class may change if the system successfully recognizes them and assigns them a more appropriate ID Class. The types of ID Classes are listed below.

• Unrecognizable: A face was detected but it wasn’t of sufficient quality to attempt recognition.

• Stranger: The person’s face is of sufficient quality to recognize them, but they’re not registered in SAFR’s Identity Database.

• No-Concern: Registered person.

• Concern: Registered person who has been marked as a person of concern.

• Threat: Registered person who has been marked as a known threat.

The following table lists the available events that SAFR makes available to Digifort.

Event Message	Id Class	Named	Person Type	Condition	People Attributes
Unrecognizable face detected	N/A	N/A	N/A	Face detected but insufficient information for recognition	idClass="unidentified"
Stranger detected	Stranger	N/A	N/A	Face detected but not found in registered people	idClass="stranger"
Registered person detected without name	Normal	No	None	Registered person without name or person type assigned	idClass="noconcern" && personType="" && name=""
Registered person detected with name <name>	Normal	Yes	None	Registered person with name but no person type	idClass="noconcern" && personType="" && name=<name>
Registered person detected of type <personType>	Normal	No	Defined	Registered person with person type but no name	idClass="noconcern" && personType=<personType> && name=""
Registered person detected of type <personType> with name <name>	Normal	Yes	Defined	Registered person with person type and name	idClass="noconcern" && personType=<personType> && name=<name>
Concern person detected without a name	Concern	No	None	Same as above for Concern	idClass="concern" && personType="" && name=""
Concern person detected with name <name>	Concern	Yes	None	Same as above for Concern	idClass="concern" && personType="" && name=<name>
Concern person detected of type <personType>	Concern	No	Defined	Same as above for Concern	idClass="concern" && personType=<personType> && name=""
Concern person detected of type <personType> with name <name>	Concern	Yes	Defined	Same as above for Concern	idClass="concern" && personType=<personType> && name=<name>
Threat person detected without a name	Threat	No	None	Same as above for Threat	idClass="threat" && personType="" && name=""
Threat person detected with name <name>	Threat	Yes	None	Same as above for Threat	idClass="threat" && personType="" && name=<name>
Threat person detected of type <personType>	Threat	No	Defined	Same as above for Threat	idClass="threat" && personType=<personType> && name=""
Threat person detected of type <personType> with name <name>	Threat	Yes	Defined	Same as above for Threat	idClass="threat" && personType=<personType> && name=<name>

2.1.5.1 SAFR Operator Modes

SAFR has different operator modes that control what events are generated. Below is a short summary of the modes most relevant to Digifort integration. For a complete description, see the Operator Modes documentation.

• Secure Access: Only triggers events when cardholders and people registered in SAFR’s Person Directory are identified with a high degree of certainty. This mode is useful when the system is being used to manage physical access. (i.e. When the system is responsible for unlocking doors for authenticated people.)

• Secure Access with Smile: Similar to Secure Access mode, except that registered people must smile in order to cause the system to grant them access.

• Enrolled Monitoring: Similar to Secure Access mode, but events are triggered at a lower recognition confidence level.

• Enrolled and Stranger Monitoring: Similar to Enrolled Monitoring mode, but events are also triggered for strangers.

2.1.5.2 Alarms and Notifications

You can also use SAFR to view recognition events. Recognition events occur when a known, unknown, or unrecognized person appears in the view of a camera. The types of recognized persons are:

• Unrecognizable: A face was detected but it wasn’t of sufficient quality to attempt recognition.

• Stranger: The person’s face is of sufficient quality to recognize them, but they’re not registered in SAFR’s Identity Database.

• No-Concern: Registered person without a name.

• No-Concern: Registered person with a name.

• Concern: Registered person who has been marked as a person of concern.

• Threat: Registered person who has been marked as a known threat.

There are several different combinations of these conditions that are triggered. The following graphic shows multiple events populated in the Digifort alerts panel:

2.1.5.3 Troubleshooting Tips

Note: When closing SAFR, use the Quit SAFR option on the File menu. Closing SAFR using the Window Close button will cause you to lose the SAFR state settings and connected cameras for that window.

• If detection or recognition results in few faces found or recognized, check that the Digifort video feeds are of a sufficiently large frame size.

• If Digifort cameras do not appear in the SAFR Desktop Client, make sure you have added cameras to Digifort as described in Connect Your Cameras to Digifort.

• If events are not being triggered, ensure the correct SAFR video processing mode is selected.
